PowerTap® and USB

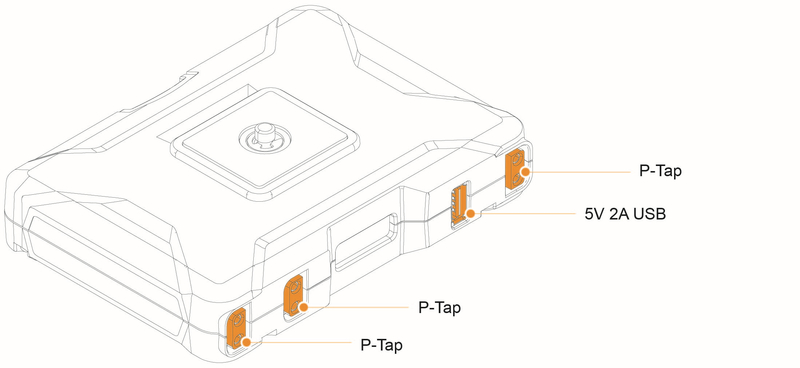

The Titon Base features 3 x P-Tap output/charging ports and 1 x 5V 2A USB Type-A ports on the side of the battery to power camera accessories. The PowerTap® allows for convenient deployment of up to 8 Amps of DC current for various parallel devices.

The USB port supplies a regulated 5 volts and maximum 2 Amps current and may be used for charging mobile devices (with Apple-ID for fast charging).


Note

P-Tap Charger (8475-0142) and PowerTap cables available separately. Kits available to suit different camera combinations, visithttp://www.antonbauer.com for more information.
