Technical Specifications


Battery Capacity

600Wh

Chemistry

Nickel-Metal Hydride (NiMH)

Charge Time (To full)

5 hours

Output Voltage (Regulated)

5V (USB), 28V or 48V

Output Voltage (Variable)

12 - 17V

Continuous Output Current (A)

Max load 700W in total

48VDC: 12A | 28VDC: 16A | 12-17 V: 24A

Output Ports

2 x 4-pin XLR for 14.4

1 x 3-pin XLR for 28v/48V

1 x USB-A

Fuse Protection

Smart electronic fuses controlled internally

Weight

29.35 lbs (13.3 kg)

Fleet Management

Yes, Wi-Fi Included

Display

2.4” LCD

Operating Temerature Range - Charge

23 to 95°F / -5 to 35°C

Operating Temerature Range - Discharge

0 to 122°F / 0 to 50°C

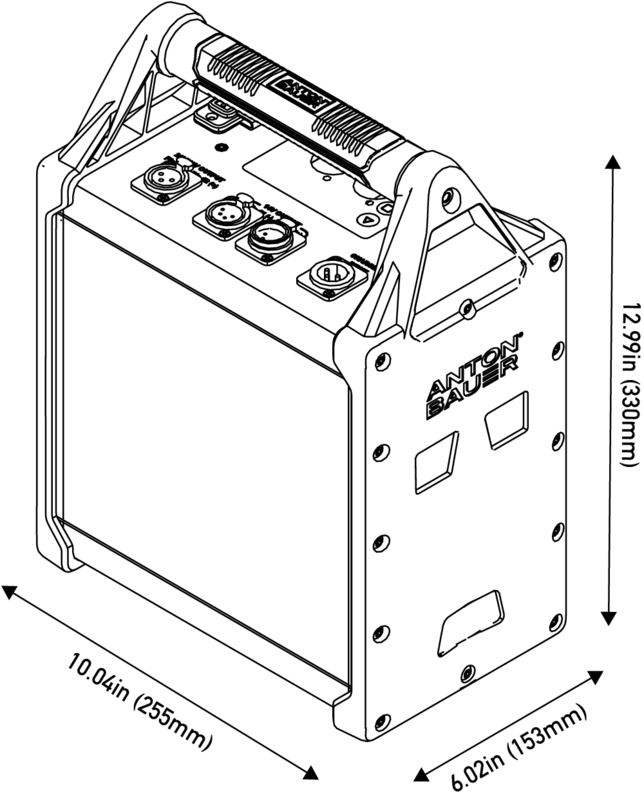

Dimensions (WxHxD)

10.04in (255mm) x 12.99in (330mm) x 6.02in (153mm)
